Home / Products / Aerosol Suction Unit

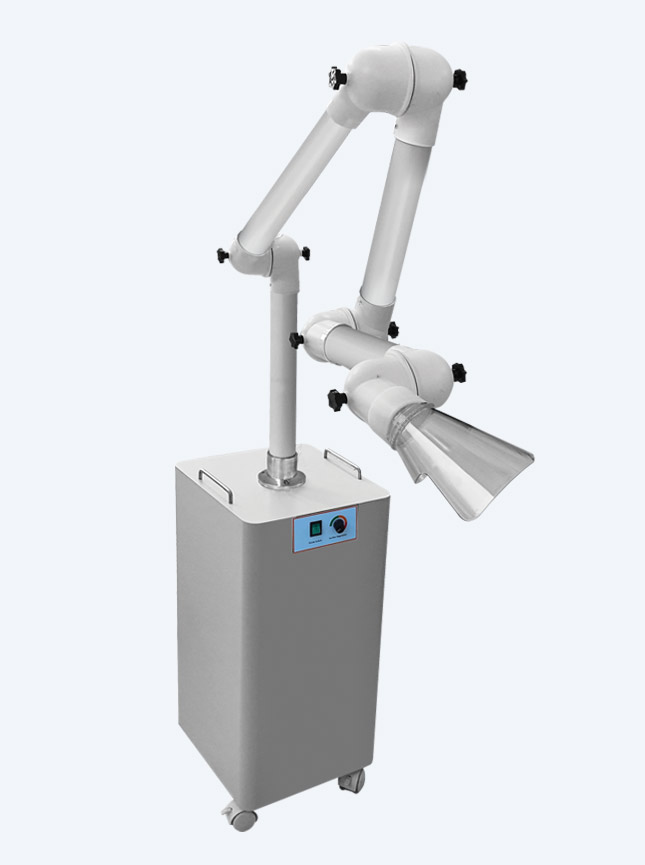

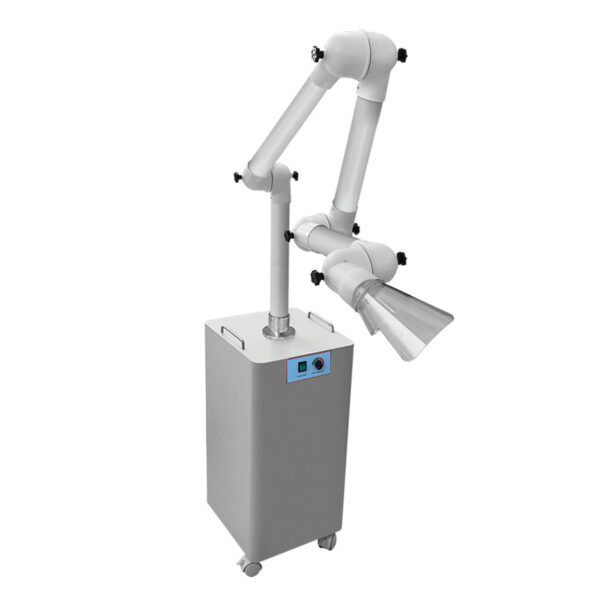

AEROSOL SUCTION UNIT

60,000.00

Control Aerosol during dental treatment. It helps in controlling aerosols based viral and microbes transmission by sucking all droplets and mist product.

  • During a dental treatment, Dental aerosol is produced from dental equipment like ultrasonic scalers, dental handpieces, three ways syringes and other high speed instruments.
  • The Dental Aerosol is contaminated with – bacteria, fungi, viruses, skin, blood, saliva, abrasive particles and so many other things.
  • The Aerosol Suction Unit helps in controlling aerosols based viral and microbes transmission by sucking all droplets and mist product.
SKU: 02-1 Category:

PRODUCT FEATURES

360° of Arm Rotation

The suction arm has 360° of rotation at the base where it connects with the unit.

99.99% clean air 0.3 micron filtration capacity

The suction has HEPA13, activated carbon, UV C filter to increase efficiency upto 99.99% of filtration

High Aerosol Aspiration Capacity

The suction has Aerosol Aspiration capacity of 3,000 L/min

Very Low Noise Level

This suction generates very low noise for comfort of both doctor & patient

Activated Carbon filter + HEPA Filter + UV-C Light + Plasma Ion Generator

Convenient emptying handles on Lid & Jar - Controls Infection

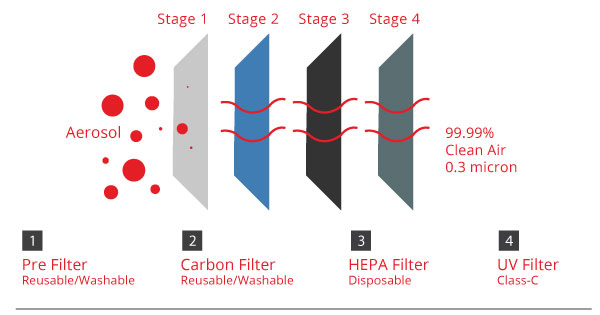

Filters of Aerosol Suction Unit

  • Activated Carbon Filter: This is the filter for basic filtration of sucked air dust particles, hair etc.
  • HEPA Filter: This filter is for effectively filtration of ultrafine particles upto 0.3 micron meter.
  • The filtration efficiency is upto 99.995%. These filters are very durable.
  • UV-C Light: The built-in UV-C light of wavelength 254nm and intensity kills all bacteria & virus by destroying the genetic material.
  • Plasma Ion Generator: Then Plasma ions (positive ions and negative ions) plays most important role in deactivating and killing the small microbes and virus by sticking to their surface.
Maximum Vacuum

Powerful motor

1200 watt

Liter per minute

Suction rate / wind pressure:

3000L/min at 5KPA

Noise Level

≤65 dB

Net Weight

Net Weight

30 Kg

Dimensions

Dimensions

325 x 325 x 760 mm

Suction Jars

High negative pressure

≥10Kpa

  Motor Powerful motor of 1200 watt
  Voltage/Frequency 50-60 Hz or AC 220-240 V
  Suction rate / wind pressure 3000L/min at 5KPA
  Noise ≤65 dB
  Working Hour Works upto 5 hours continuously
  Pressure High negative pressure from ≥10Kpa
  UV Lamp power 6W UVC
  Filter level HEPA-13 (Duel HEPA, Carbon Activated)
  Plasma Ions 100 million/mm3 (-ve), 80 million/mm3 (+ve)
  Tube Length 1.4 meter
  Tube Diameter 50 mm
  Dimension 325 x 325 x 760 mm
  Weight 30 Kg
