Home / Products / High Vacuum Suction Units


SS Housing

Stainless Steel Housing

Electronic Sensor

Sensor to prevent splash droplets from entering the pump.

Vacuum Gauge

4 inches round vacuum gauge for easy readability

Double Rotary Vane Pump

Specially designed twin pump system for faster vacuum build-up

Maximum Vacuum

Max. vacuum

-700 mm Hg

Liter per minute


50 Ltrs / min

Noise Level

50 dB A ± 3

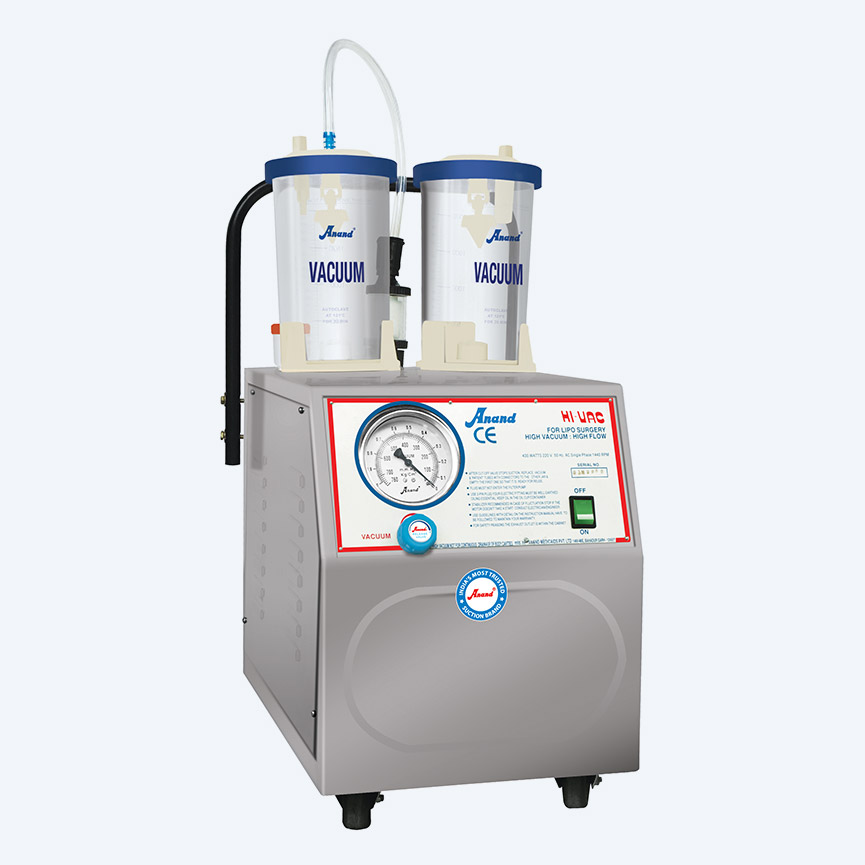

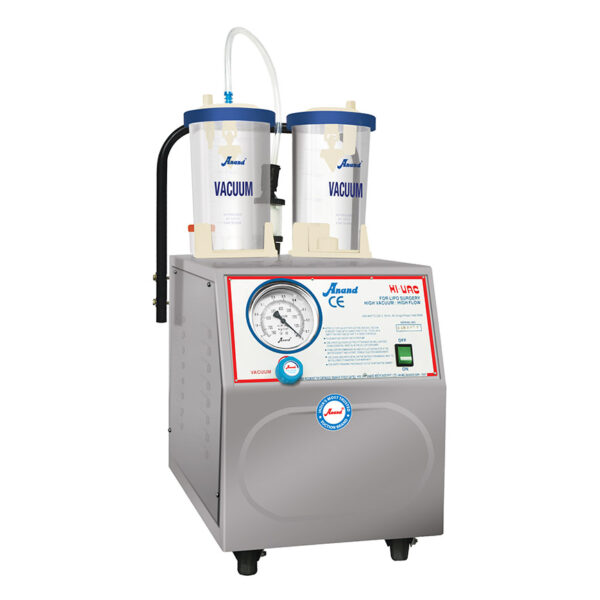

HI-VAC Pluss 90, High Vacuum Suction Unit
Net Weight

Net Weight

36 Kg



49 x 36 x 70 cms

Suction Jars


2 x 2 Ltrs. PC Jar

  Housing Stainless Steel on four castors
  Max. Vacuum / LPM -700 mm Hg, 50 Ltrs / min
  Pump Type Double Rotary Vane Pump
  Jars 2 x 2 Ltrs. PC Jar
  Filter Trap Filter with inbuilt overflow protection
  Tubing 10 mm ID x 2 mtr. (PVC)
  Vacuum Gauge 10 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz, 380 Watt
  Noise Level 50 dB A ± 3
  Dimensions 49 x 36 x 70 cms
  Net Weight 36 Kg
  Overflow Safety Dual Mechanical
  Optional Foot switch / Bacterial filter / 110 V
  Certifications CE, IEC 60601-1-2012
