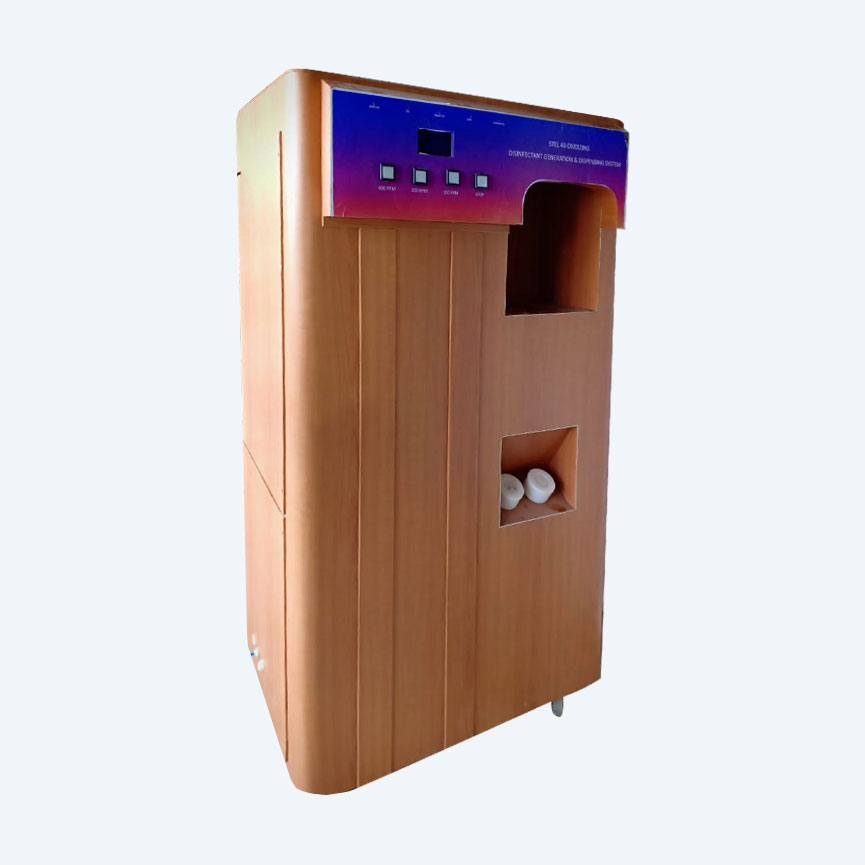

Andy-Lyte - Mixed Oxidant Disinfectant Generation System

ANDI LYTE

₹60,000.00

Mixed Oxidant Disinfectant Generation System.

Andilyte mixed oxidant generators are state of the art systems, which generate mixed oxidants from a mixture of water and proprietary electrolyte solution. The water and electrolyte are mixed automatically and passed through a flow-through cell. The high density current produced in the cell activates this mixture and generates a mixture of oxidants. The total oxidant concentration is optimized to around 400 ppm. The solution is generated at a near neutral pH.

SKU: 30 Category:

Related products

Power
350W approx

Solution Generation Capacity
40L/ Hr

Andy Lyte

LCD Display
4 Line, single color

Frequency
50Hz/ 60Hz

Today the entire healthcare delivery system is struggling with hospital acquired infections (HAI). HAI is one of the leading causes of morbidity and mortality in hospitals, with nosocomial infection rates varying between 5-50% across countries. We at Anand are committed to fighting this problem and we present the most advanced tool for controlling HAI: Andilyte mixed oxidant generation system.

The generated solution is a non-toxic, environmentally friendly disinfectant, which can be used for almost all disinfection applications in a hospital. The solution is broad spectrum biocide, which kills all forms of viruses, bacteria, fungi and spores in short contact time of less than 5 minutes.

  Generator Specifications
  Solution Generation Capacity 40L/ Hr
  LCD Display 4 Line, single color
  Display Parameters Current, Voltage & Errors
  LED Indicators Power, System, Fuse, Error
  Self Diagnostic Automatic (At preset time & current)
  Error Display On LCD Display
  Descaling of cells Automatic based on system parameters.
  Cell configuration Twin (2 Nos)
  Solution Tank Capacity 50 Ltr./ 200 Ltr. as per Customer’s requirement.
  One liter of electrolyte solution generates 50 liters of disinfectant solution at 400 ppm.
  Solution Audit Generated solution is audited in real time and give suitable user prompts.
  Display of maintenance cycle Yes

  Water Conditioning Unit Specifications
  Water Conditioning Unit Capacity 50L/ Hr
  Water filling Automatic
  Conditioned Water Tank Capacity 50L
  Continuous preventive maintenance of membrane Yes

  Electrical Requirement
  Power 350W approx
  Supply 220V - 240V AC
  Frequency 50Hz/ 60Hz

The system is controlled using an integrated control panel for both the generator and Water Conditioning Unit.

  Solution Parameters
  Total Mixed Oxidant Concentration ≥ 400ppm
  Total concentration of dissolved salts < 2000ppm
  pH 7 + 0.5
  Toxicity No known toxicity
  Microbicidal efficacy Effective against all types of bacteria, viruses, fungi & spores
  Contact time 5 minutes or less

  Consumable Pack
  Andi-lyte Electrolyte concentrate 10 liter pack (2x5 liter cans) other pack sizes can be considered on special request.

Technical Information for Andy Lite
