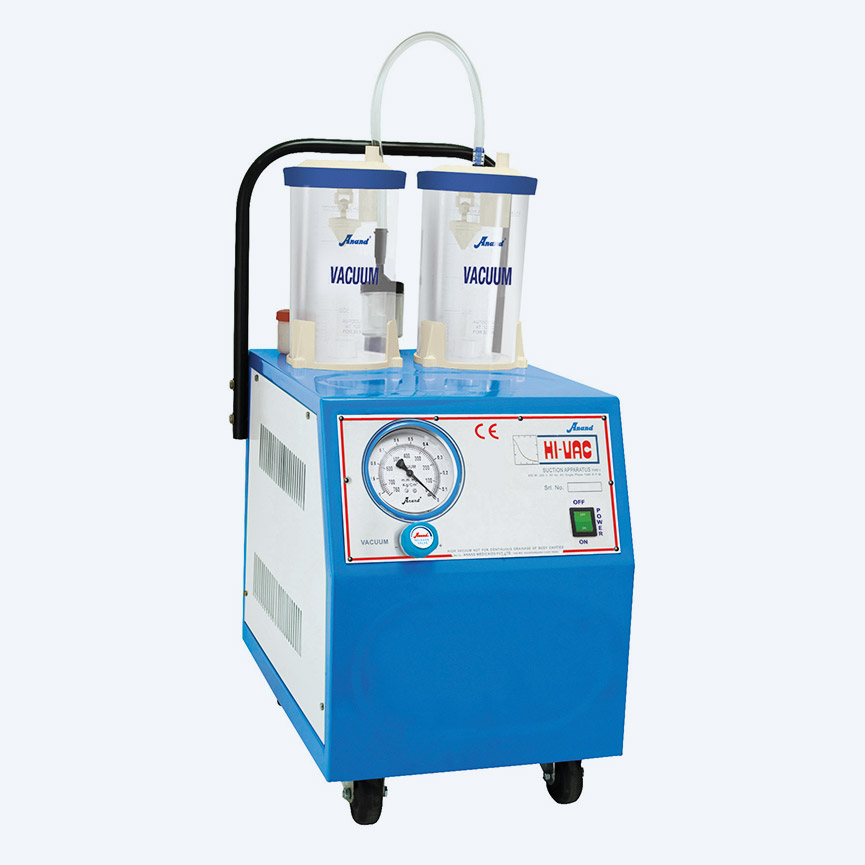

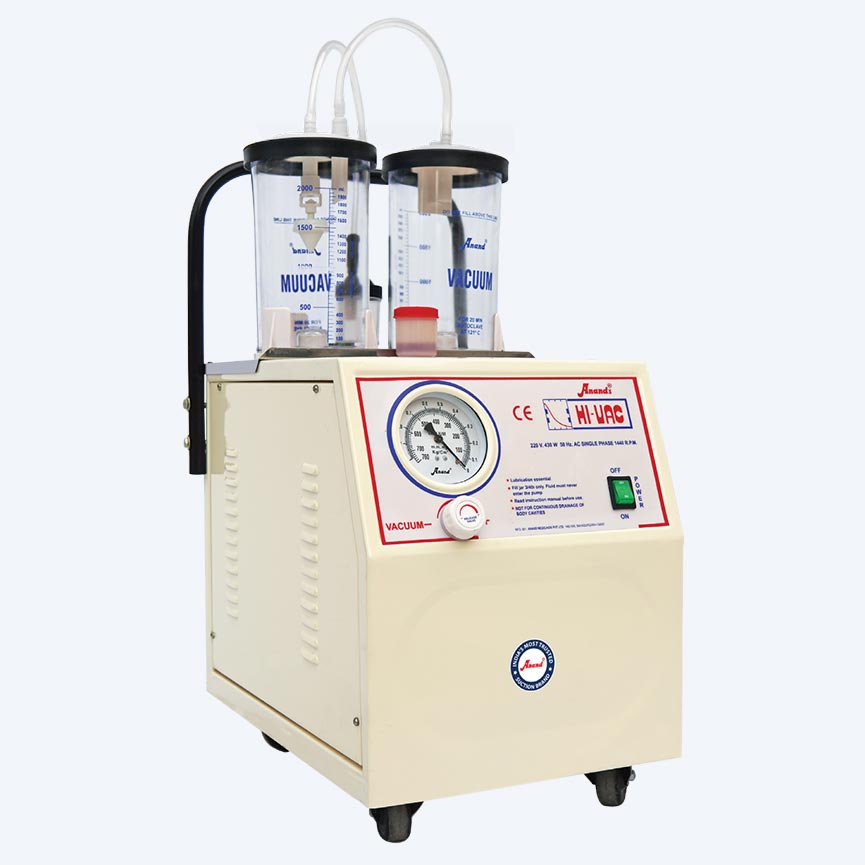

HI-Vac MS Suction Unit

HI-VAC MS

₹60,000.00

A light weight fast vacuum build up suction unit in mild steel (MS) powder coated on four wheels.

MAIN APPLICATIONS

  • Emergency Department
  • Intensive Care Unit
  • OT / Surgery
  • Endoscopy
  • Obstetrics / Gynaecology
  • Gastroenterology
SKU: 004 Category:

Related products

PRODUCT FEATURES

MS Housing

Powder Coated Mild Steel Housing

Filter

Trap Filter with inbuilt overflow protection

Vacuum Gauge

4 inches round vacuum gauge for easy readability

Double Rotary Vane Pump

Specially designed twin pump system for faster vacuum build-up

Maximum Vacuum

Max. vacuum

700 mm Hg

Liter per minute

LPM

45 Ltrs / min

Noise Level

50 dB A ± 3

HI-Vac MS Suction Unit
Net Weight

Net Weight

34 Kg

Dimensions

Dimensions

49 x 36 x 70 cms

Suction Jars

Jars

2 x 2 Ltrs. PC Jar

  Housing MS / Stainless Steel on four castors
  Max. Vacuum / LPM 700 mm Hg, 45 Ltrs / min
  Pump Type Double Rotary Vane Pump
  Jars 2 x 2 Ltrs. PC Jar
  Filter Trap Filter with inbuilt overflow protection
  Tubing 10 mm ID x 2 mtr. (PVC)
  Vacuum Gauge 10 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz, 380 Watt
  Noise Level 50 dB A ± 3
  Dimensions 49 x 36 x 70 cms
  Net Weight 34 Kg
  Overflow Safety Dual Mechanical
  Optional Foot switch / Bacterial filter / 110 V
  Certifications CE, IEC 60601-1-2012

Technical Information for Hi Vac MS
Instruction Manual for Hi Vac MS
