Electrical cum Manual Suction Units

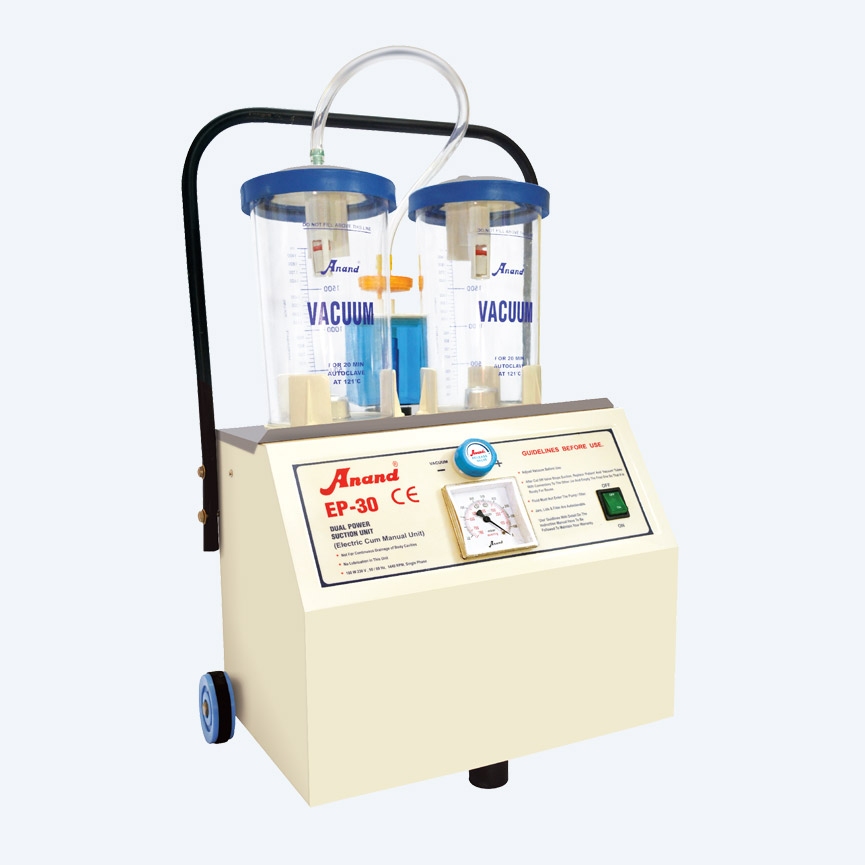

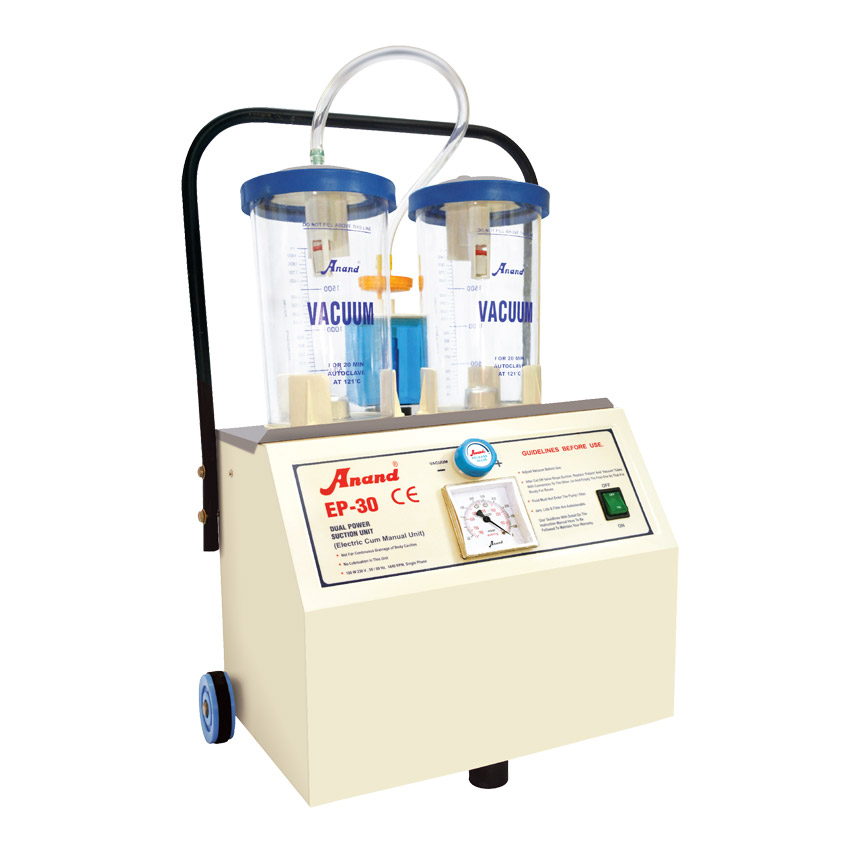

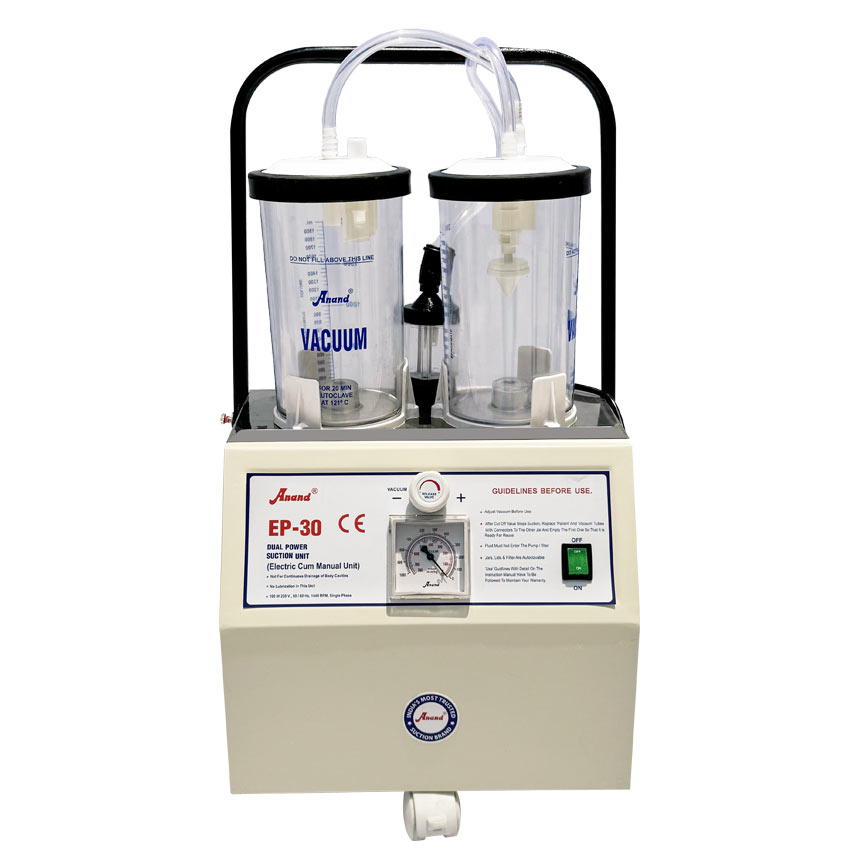

EP-30

₹60,000.00

A dual Suction Unit comprising of oil-free electrical suction pump integrated with Pedal/Manual Suction Unit use in places where electricity is erratic.
MAIN APPLICATIONS

  • Minor OT’s
  • Intensive Care Unit
  • Emergency Department
  • Wards
SKU: 21 Category:

PRODUCT FEATURES

MS Housing

MS Powder Coated, SS Top on two wheels

Filter

Trap Filter with inbuilt overflow protection

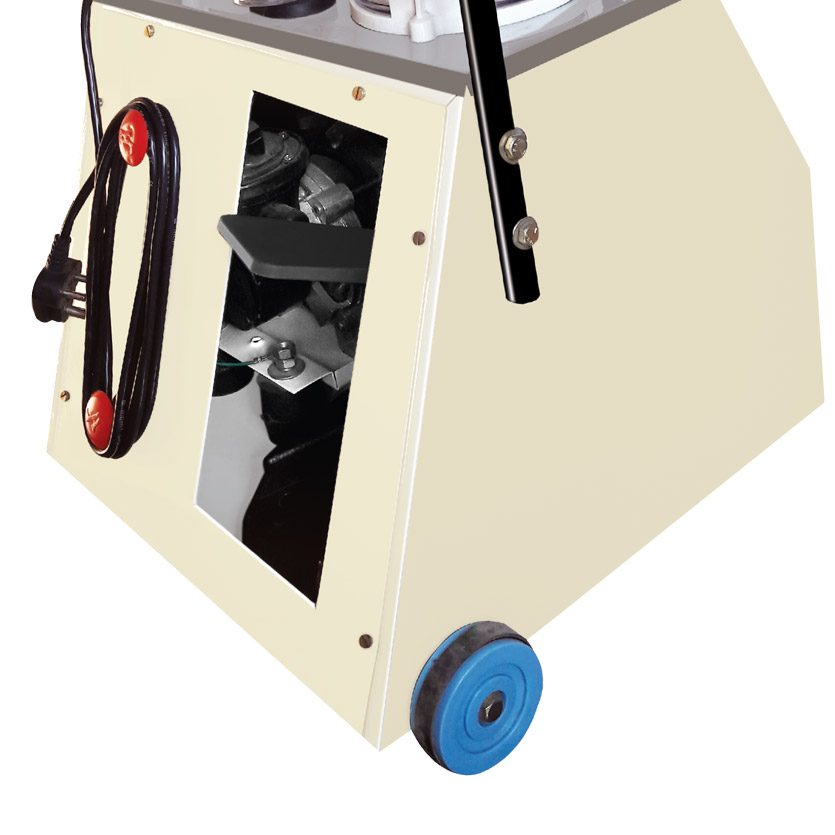

EP30 Back View

Manual Suction

Oil-free Diaphragm Pump

No-oil maintenance free diaphragm pump.

Maximum Vacuum

Max. vacuum

Electric -600 mm Hg
Pedal -600 mm Hg

Liter per minute

LPM

Electric 45 Ltrs / min
Pedal 200 ml /push stroke

Noise Level

55 dB A ± 3

Electrical cum Manual Suction Units
Net Weight

Net Weight

15.5 Kg

Dimensions

Dimensions

42 x 39 x 64 cms

Suction Jars

Jars

2 x 2 Ltr. PC Jar

  Housing MS Powder Coated, SS Top on two wheels
  Max. Vacuum / LPM Electric -600 mm Hg, 45 Ltrs / min / Pedal -600mm Hg, 200 ml /push stroke
  Pump Type Electric - Diaphragm / Pedal - Piston
  Jars 2 x 2 Ltr. PC Jar
  Filter Trap Filter with inbuilt overflow protection
  Tubing 10 mm ID x 2 mtr. (PVC)
  Vacuum Gauge 6.25 cm dia 0-760 mm Hg
  Power Supply 220 V AC, 50 / 60 Hz 90 Watt
  Noise Level 55 dB A ± 3
  Dimensions 42 x 39 x 64 cms
  Net Weight 15.5 Kg
  Overflow Safety Dual Mechanical
 Optional 110 V
  Certifications CE, IEC 60601-1-2012

Technical Information for EP-30.
Instruction Manual for EP-30.
